Turbocharger, Garrett G35-900, STANDARD ROTATION, 1.01 A/R UNDIVIDED, OPEN T3 INLET W/ 3" VB OUT
Regular price
$3,080.83
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert

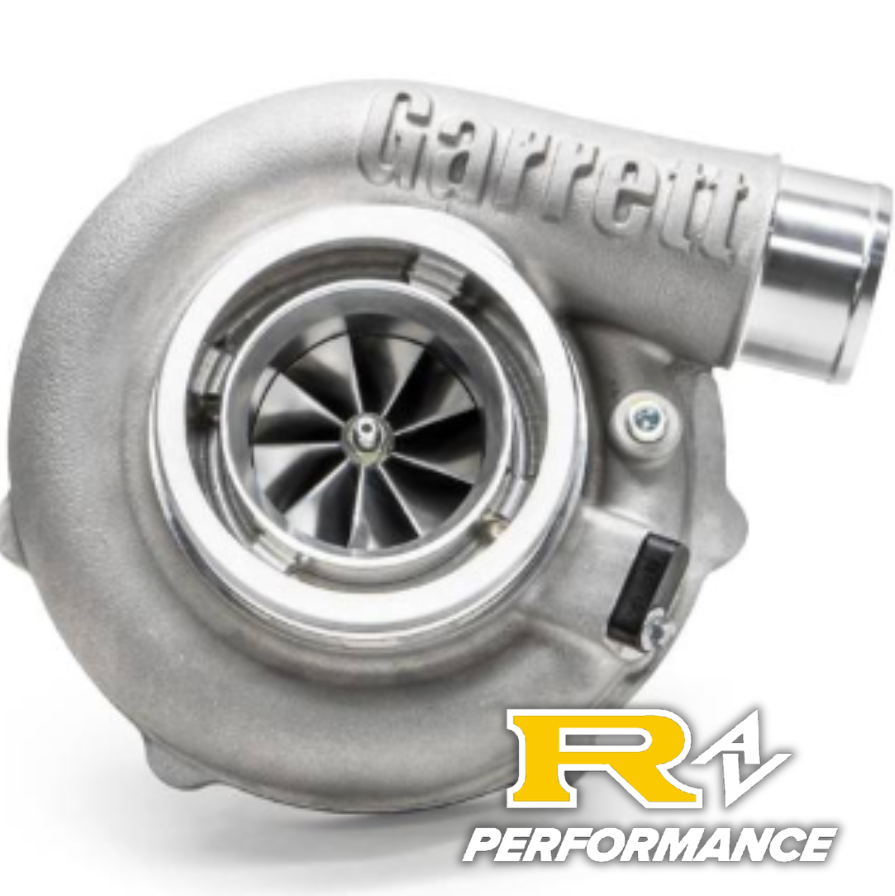

- Garrett® G35-900 standard rotation turbo assembly kit with 4" inlet and 2" outlet compressor housing and 1.01 A/R O/V, Undivided T3 Entry/V-Band outlet turbine housing.
Product Features:
- New G Series compressor wheel aerodynamics
- Fully machined speed sensor and pressure ports
- Standard and reverse rotation configurations available
- Oil restrictor and water fittings included with purchase
- One piece center housing and backplate for increased durability
- 4 water jacket ports for customizable installation
- Mar-M turbine wheel material rated up to 1050° C | 1922° F
- Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
- Compressor Wheel Inducer: 62mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing Inlet: T3 Open(undivided) inlet (same flange size and placement as GTX)
- Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
