Tomei PONCAM Exhaust Camshaft 254 Duration 9.15mm Lift Nissan Skyline GT-R R34 RB26 RB26DETT TA301E-NS05B

SKU: TA301E-NS05B
(0)
In stock - 2 items available
Usually ships within 24 hours
$332.00
-2% $340.00 $332.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email 561-601-4550

Tomei PONCAM Exhaust Camshaft 254 Duration 9.15mm Lift Nissan Skyline GT-R R34 RB26 RB26DETT

This listing is ONLY for the exhaust camshaft for a BNR34

-
NISSAN RB26DETT CAMSHFT

IN
EX
■ Pre-set valve timing
■ Works best with 'bolt-on' type turbos
■ Stable idle
■ Compatible with stock valve springs
■ Noticeable, linear gains in performance
SINGLE MSRP＄340.00(USD)
SET MSRP＄680.00(USD)
*Sold as a set of 2 (IN and EX)
Duration
(° )
Max cam
lift
（mm）
Application
IN/
EX
Single P/N
Set P/N
254
9.15


BNR34

EX TA301E-NS05B

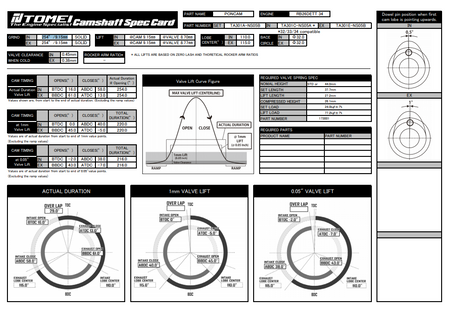

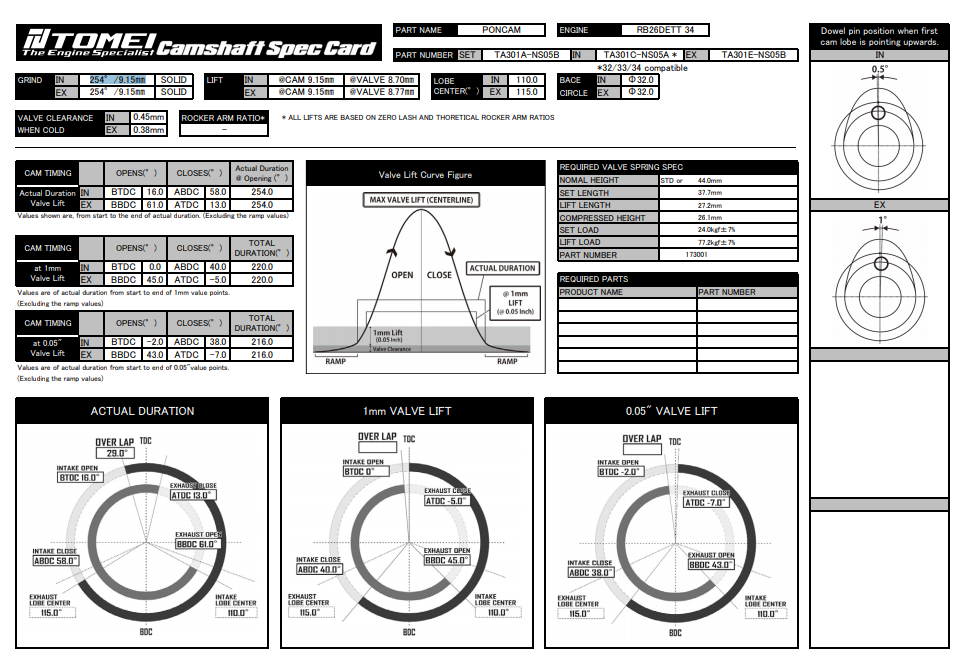

Duration
(° )
Max cam
lift
（mm）
IN/
EX
Max
valve lift
（mm)
Cold valve
clearance
（mm）［±0.01］

Valve timing
center
Line (° )
Base
circle
(Φ)
Stock
valve spring
compatible
 Stock
valve Lifter
compatible
254
9.15




32.0
√
√
EX
8.77
0.38
115


The VALC profile allows the valves to open faster and for longer. This translates to faster lift and increased area under the 'lift curve' (see fig. ①)
which in turn generates more power. (Greater area under the 'lift curve' = greater air intake)
①

・CAM ACCELERATION：LOW
・LIFT：LOW
・AIR INTAKE：LOW		   ・CAM ACCELERATION：HIGH
・LIFT：HIGH
・AIR INTAKE：HIGH
Unlike the valve opening, the VALC profile ensures that the valves close at a slower rate, helping to prevent common valve train related issues.
With a conventional direct-acting valve train, the maximum lift is usually determined by the size/diameter of the valve lifter. Selecting a high-lift camshaft without taking this into consideration often results in the camshaft lobes travelling beyond the surface of the valve lifter. This causes the lobe to make contact with the edge of the lifter, damaging both components over time. （see fig. ②）
Therefore, the ideal performance orientated high-lift camshaft needs to have a profile that maximizes lobe travel on the lifter without exceeding the outer edge.

VALC profile camshafts have achieved this ideal by deliberately reducing the maximum cam velocity to limit lobe travel on the lifter surface.　（Maximum cam velocity = lobe travel distance on lifter)　
②
High lift profile without taking lifter size/radius into account.
Compared to standard profile camshafts of the same lift, VALC profile camshafts are able to then then off-set the difference for even greater lift/performance gains.
Conventional profile based on lifter size/radius.
'VALC' profile.
''VALC' profile + additional lift.
Lift comparison between a conventional profile and 'VALC' profile.
 Conventional profile
 'VALC' profile
 'VALC' profile + additional lift.
