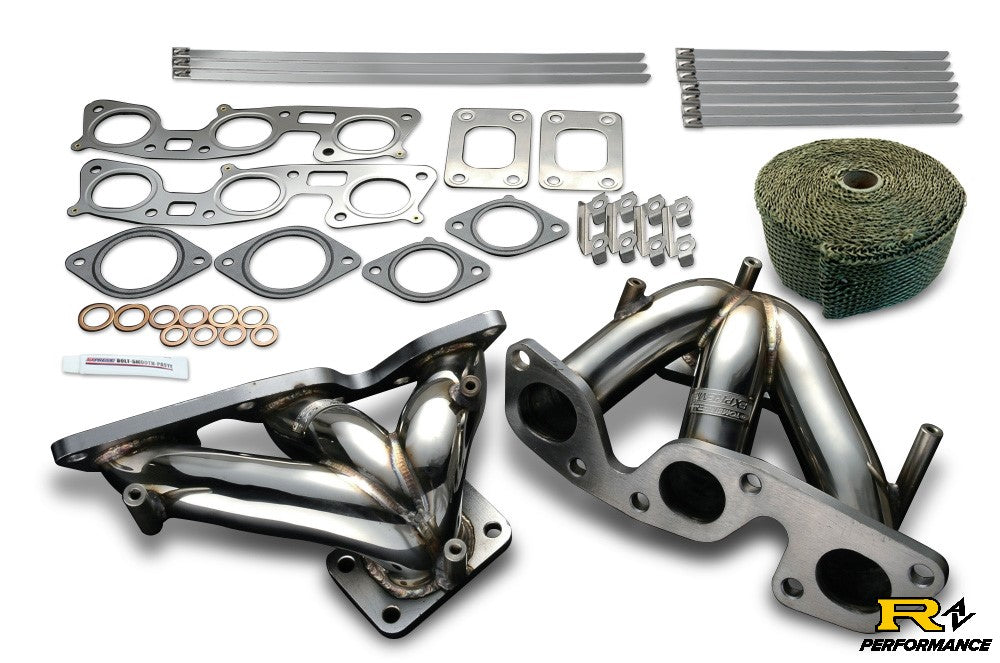

Tomei Expreme Exhaust Manifold Kit for Nissan Skyline R32 R33 R34 GT-R RB26DETT TB6010-NS05A

SKU: TB6010-NS05A
(0)
Only 1 left
Low inventory - Hurry up!
$874.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email 561-601-4550
Superior Manufacturing Quality
The products were made by "Lost Wax" production method with SUS304 alloy.
For overall high performance we have designed the pipe diameter to be 41.5mm in diameter & 2.5mm in thickness which brings out the high quality sound.
Highly accurate TIG welding.
Smooth bends to decreases exhaust flow interference.
The pipe angles were designed to increase exhaust flow efficiency.
Attention to details with the smoothness of the internals of the product.
Compatible with the factory standard heat shield.
MODEL TYPE PART NUMBER TURBINE
BNR32 RB26DETT TB6010-NS05A
(Previous P/N 193084)		 Genuine STD
Genuine N1
Aftermarket Bolt On Products
BCNR33
BNR34
MATERIAL PIPE DIAMETER
(φ)		 PIPE THICKNESS
(mm)		 WEIGHT
(kｇ)
PIPE FLANGE
SUS304 Steel 41.5 2.5 3.6
(Normal 6.6)



A Comparison of the Exhaust Manifolds Exit.
A Comparison of the Exhaust Manifolds Entrance.

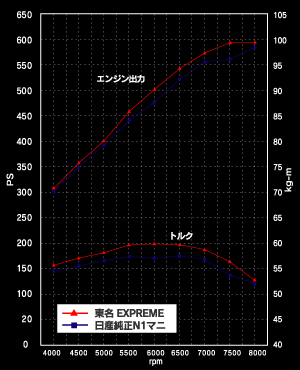

EXPREME Manifold/Nissan Genuine N1 manifold Dyno Graph Comparison.
An overall improvement of output torque & power is clearly visible with this graph in comparison with the genuine factory N1 Manifold. Our EXPREME product clearly surpasses the N1 performance.
