Tial V60 60mm Universal Wastegate V-Band Black V60-Black

by Tial
Save 3%
$559.00
$540.00

or pay over time in interest-free installments with Affirm.

learn more
SKU V60-Black

The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead-on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Circuit de la Sarthe.

Specifications

  • High temp NiCrFe based alloy valve and 347SS valve housing offer longer product life compared to competing designs.
  • High-temperature silicone Nomex reinforced actuator diaphragm.
  • 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists "relaxing" up to 900F (483C).
  • Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
  • All Stainless Steel hardware.
  • Mating weld flanges are 304L
  • Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
  • Race-proven at Le Mans
  • Flows 330CFM @ 1psi differential pressure

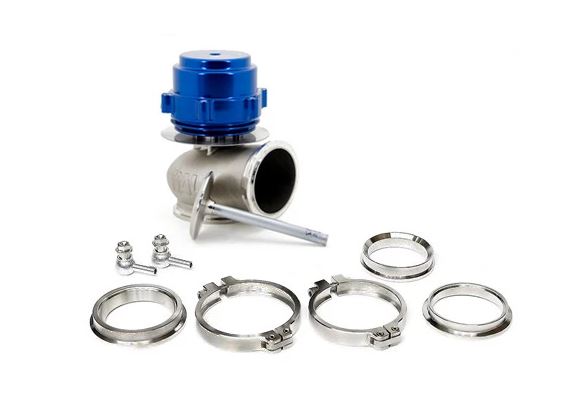

Included with every TiAL V60

  • V60 Assembly
  • V60 Valve Seat
  • 2 TiAL Air Fittings
  • Inlet Flanges and Clamps
  • Outlet Flanges and Clamps

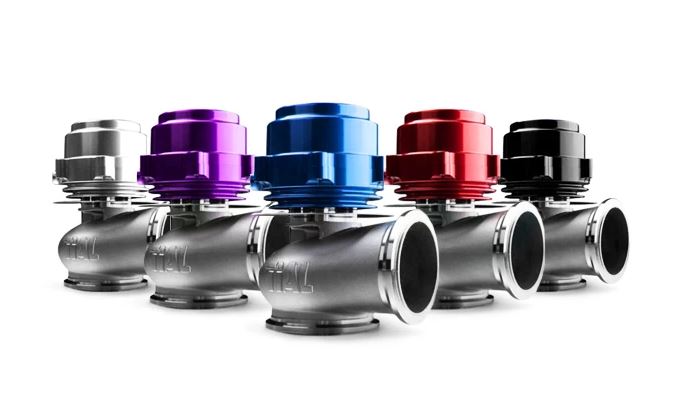

Available Colors

  • Black
  • Blue
  • Purple
  • Red
  • Silver

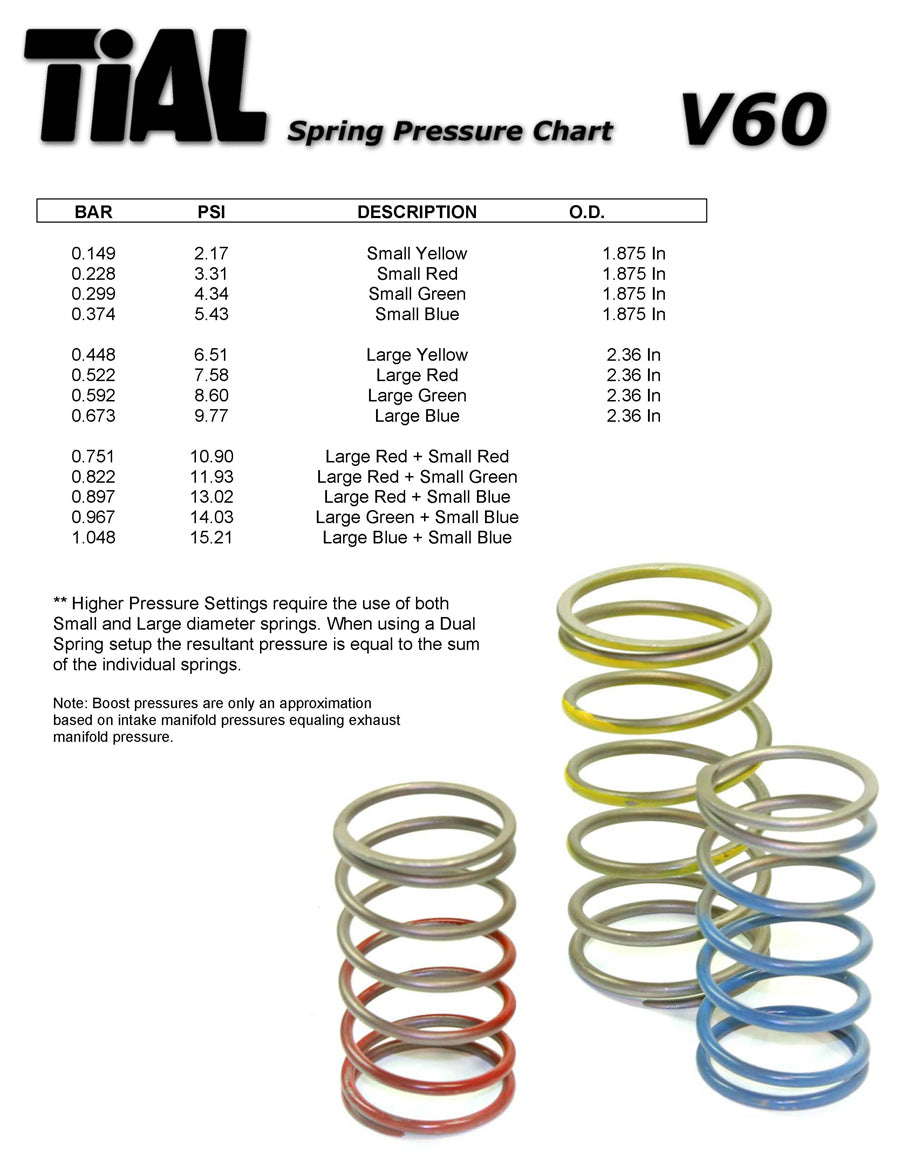

Available Spring Pressures

  • 2.17 PSI
    3.31 PSI
    4.34 PSI
    5.43 PSI
    6.51 PSI
    7.58 PSI
    8.60 PSI
    9.77 PSI
    10.9 PSI
    11.93 PSI
    13.02 PSI
    14.03 PSI
    15.21 PSI

How to choose your spring pressure
