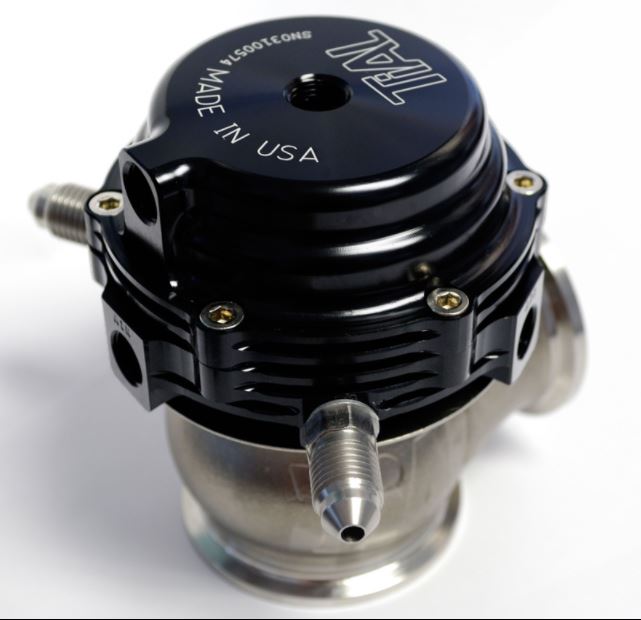

Tial MVS 38mm Universal External Wastegate V-Band Black MVS38-BLK
This listing is for the BLACK housing.
The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy!
Specifications
- High temp NiCrFe based alloy valve and 316SS valve housing offer longer product life compared to competing designs.
- High-temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists "relaxing" up to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra-compact design fits in very tight spaces.
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!

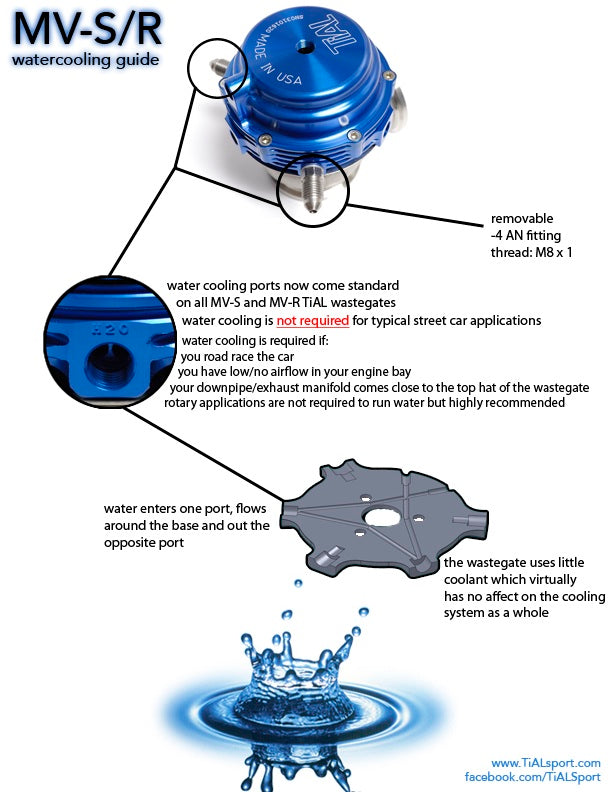

- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
- Optional valve position sensor available for purchase in a MV-S assembly or in an actuator kit to adapt to standard MV-S.

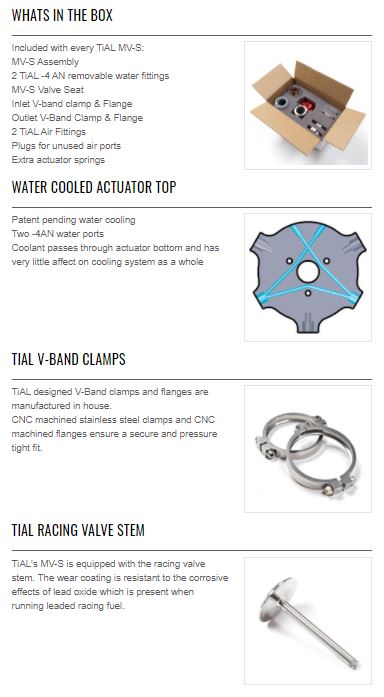

Included with every TiAL MV-S:
-
MV-S Assembly
-
2 TiAL -4 AN removable water fittings
-
MV-S Valve Seat
-
Inlet V-band clamp & Flange
-
Outlet V-Band Clamp & Flange
-
2 TiAL Air Fittings
-
Plugs for unused air ports
- Extra actuator springs
Available Colors
- Black
- Blue
- Purple
- Red
- Silver
