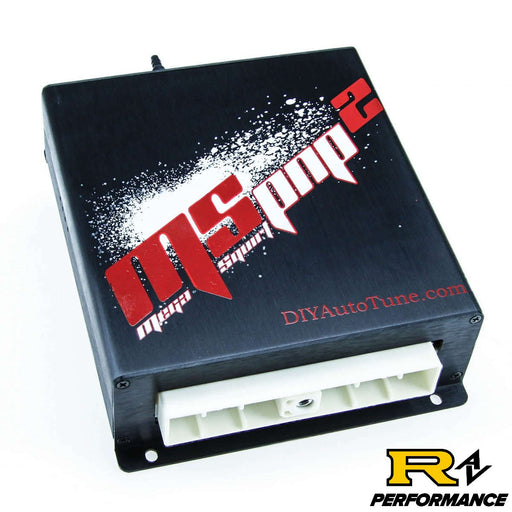

MegaSquirt Nissan 240SX 200sxMSPNP Gen2 Plug and Play ECU MSPNP2-NS9501a

Sold out
Original price $799.00 - Original price $799.00
Original price
$799.00
$799.00 - $799.00
Current price $799.00
SKU MSPNP2-NS8994

KA24DE 240SX 9501a MegaSquirtPNP Gen2 Plug and Play Standalone Engine Management System is compatible with the following:

  • 1995 USDM Nissan 240SX with KA24DE engine and manual transmission
  • 1996-1997 Nissan Hardbody Pickup with KA24E (manual transmission)
  • 1995-1997 Nissan Sentra with SR20DE (manual transmission)
  • 1995-1997 Nissan 200SX (USDM, front wheel drive, manual transmission)
  • 1995-1996 Nissan Altima with KA24DE (manual transmission)

KA24DE 240SX 9501a MegaSquirtPNP Gen2 Plug and Play

KA24DE 240SX 9501a MegaSquirtPNP Gen2 Plug and Play #NS9501a Features:

  • Fully Plug and Play Installation – No wiring required for basic functionality.  Average install time is under 1 hour!
  • KA24DE base map is pre-loaded to help your engine start on the first turn of the key (other model base maps included on USB stick)
  • Real time tuning and data logging with a laptop connection
  • Supports most aftermarket wideband sensors

Fully Tunable Engine Control!

  • 16×16 Fuel Tables allow high resolution tuning
  • 12×12 Ignition Tables
  • Multiple Acceleration enrichment strategies
  • Closed Loop Idle Speed Control
  • Air Conditioner Control
  • Up to 4 sequential fuel injector channels with individual trim tables (Add on trigger disc required for sequential injection)
  • Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
  • Allows removal of stock MAF

Advanced Feature Set (Included!)

  • 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
  • Built-in 2-step rev limiter / launch control with flat shift
  • Real time barometric correction
  • Internal 4-bar MAP sensor reads up to 44PSI of boost
  • Overboost protection
  • Closed loop boost control (Requires EBC solenoid kit)
  • Knock sensor input with adjustable sensitivity
  • Headphone output for knock sensor – listen for knock while you tune!
  • Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
  • Input for flex fuel sensor – switch between E85 and gasoline on the fly!
  • CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

What you get in the box:

  • KA24DE 240SX 9501a MegaSquirtPNP Gen2 Plug and Play ECU
  • MSPNP RS232 serial tuning cable, 6′ (USB adapter sold separately, if needed)
  • Tuning Software and Documentation USB Stick
  • 6′ Vacuum Hose for MAP Signal and ‘T’ fitting
  • Four Screws for ECU mounting
