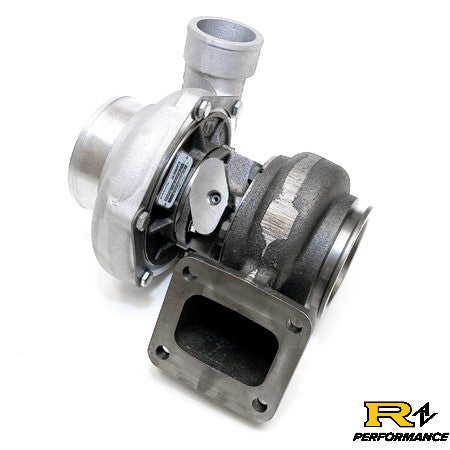

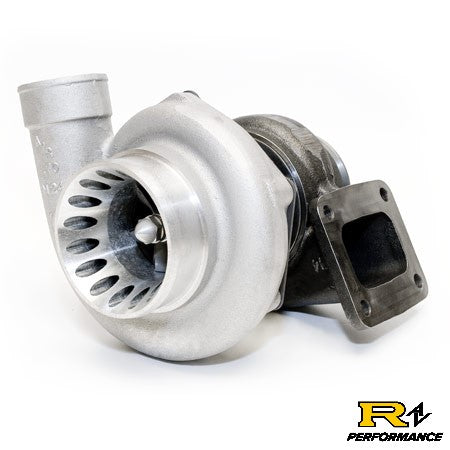

Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet
Click or scroll to zoom
Tap or pinch to zoom
Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet
Click or scroll to zoom
Tap or pinch to zoom
Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet
Click or scroll to zoom
Tap or pinch to zoom
Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet
Click or scroll to zoom
Tap or pinch to zoom
Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet
Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet

Garrett To4Z Ball Bearing Turbo T4 Divided 1.32 AR with 3" V-Band Outlet

by Garrett
Sold out
$1,770.00
$1,589.00

or pay over time in interest-free installments with Affirm.

learn more

PAYING IN INSTALLMENTS
Want to spread out the cost of your order? Select 'Affirm' as your payment method at checkout to pay in low interest or interest-free installments, with no hidden fees.

With Affirm, you can make monthly payments with zero hidden fees. Payment options are subject to eligibility check and approval. Estimated payments amounts excludes taxes and shipping fees. A down payment may be required. Affirm payment options are provided by Cross River Bank, Member FDIC.

SKU GRT-TBO-055P-1.32

Dual Ball Bearing Garrett T4Z. 700-750HP potential flow. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection.


TURBINE HOUSING OPTIONS:

  • Divided T4 Housing with standard 3" V-Band Outlet: 1.32 A/R
  • Polished Housing (add $75)

    •

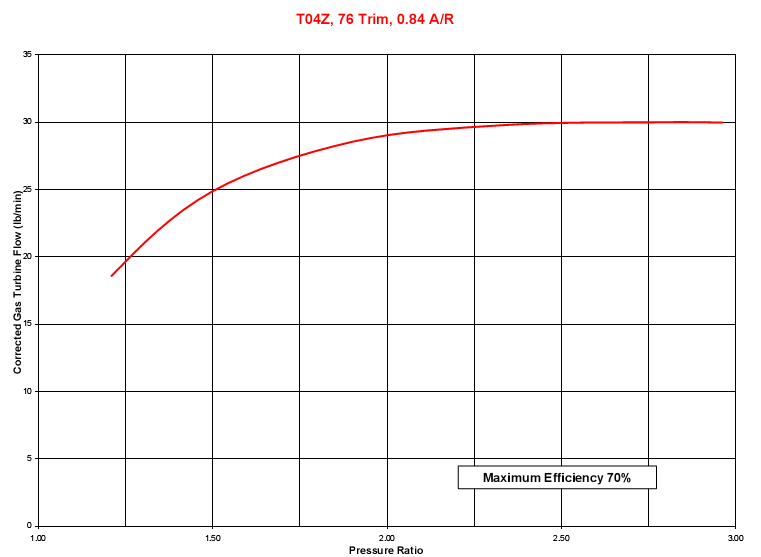

    TURBINE SPECIFICATIONS:

  • Wheel: 74.2mm w/ 76 trim

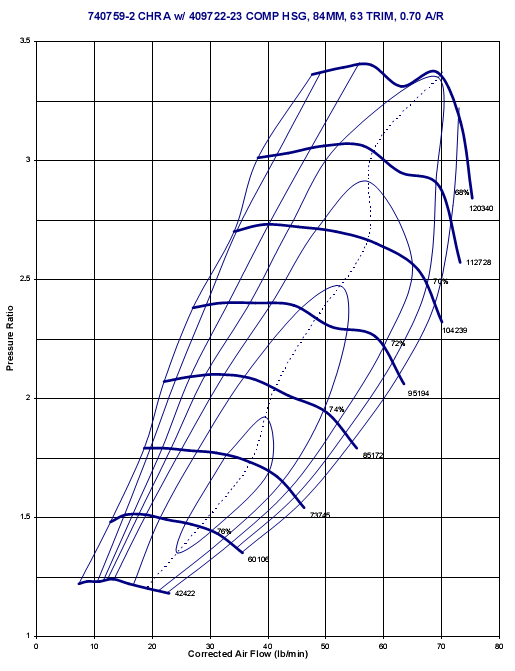

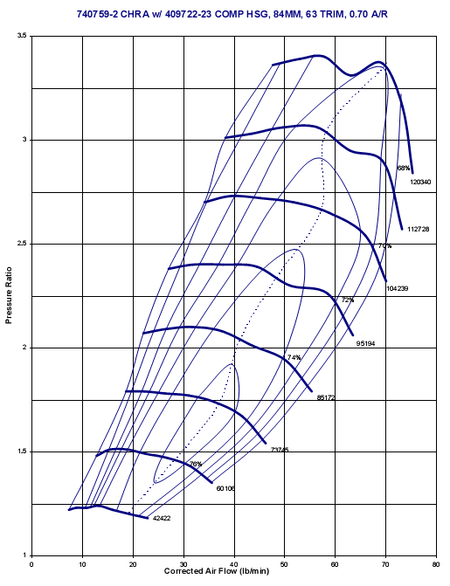

    • COMPRESSOR SPECIFICATIONS
  • Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
  • Housing: 0.70 A/R
