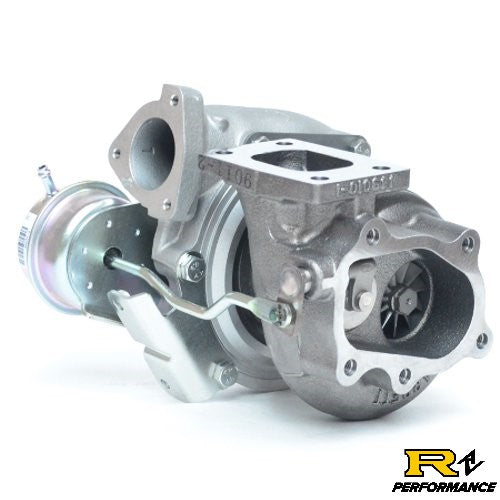

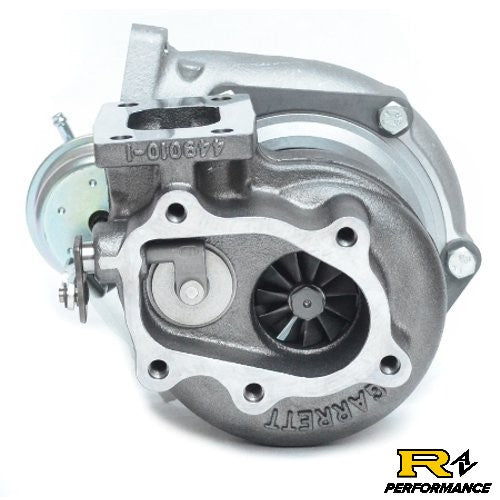

Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Click or scroll to zoom
Tap or pinch to zoom
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX
Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX

Garrett GTX2976R Dual Ball Bearing .86 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX

by Garrett
Sold out
$1,842.61
$1,765.00

or pay over time in interest-free installments with Affirm.

learn more

PAYING IN INSTALLMENTS
Want to spread out the cost of your order? Select 'Affirm' as your payment method at checkout to pay in low interest or interest-free installments, with no hidden fees.

With Affirm, you can make monthly payments with zero hidden fees. Payment options are subject to eligibility check and approval. Estimated payments amounts excludes taxes and shipping fees. A down payment may be required. Affirm payment options are provided by Cross River Bank, Member FDIC.

SKU GRT-TBO-508-86AR

PRODUCT DESCRIPTION:

  • New GTX2976R .86 A/R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
  • Includes internally gated T25 flanged turbine housing .86 A/R  and internal wastegate actuator (12 to 14PSI).
  • The GTX2976R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 640HP potential flow.


PRODUCT SPECIFICATIONS:

  • Compressor Wheel Inducer: 58.0mm
  • Compressor Wheel Exducer: 76.6mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 53.6mm
  • Turbine Wheel Trim: 90
  • Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
  • Internal Wastegate Actuator (12 to 14PSI)

Kit Includes everything you need to bolt turbo onto your SR20DET

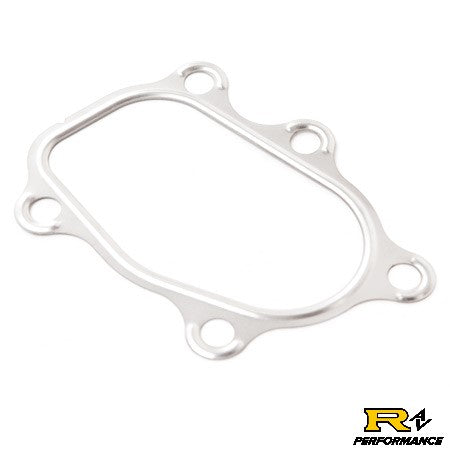

  • 5-Bolt Gasket
  • Inlet Gasket

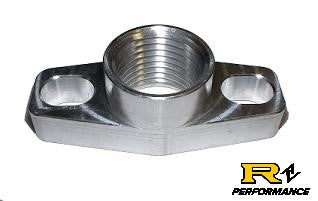

  • Aluminum Oil Drain Flange
  • Oil Drain Gasket
