Garrett GTX2976R Dual Ball Bearing .64 A/R 640HP+ SR20DET Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX

by Garrett
Sold out

or pay over time in interest-free installments with Affirm.

learn more

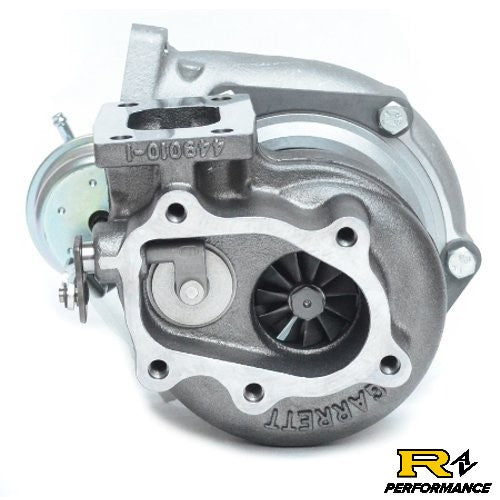

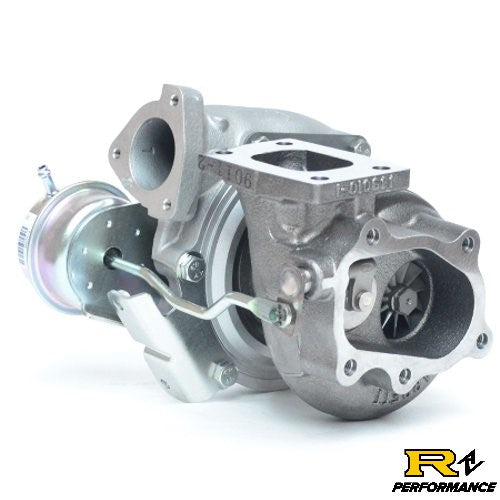

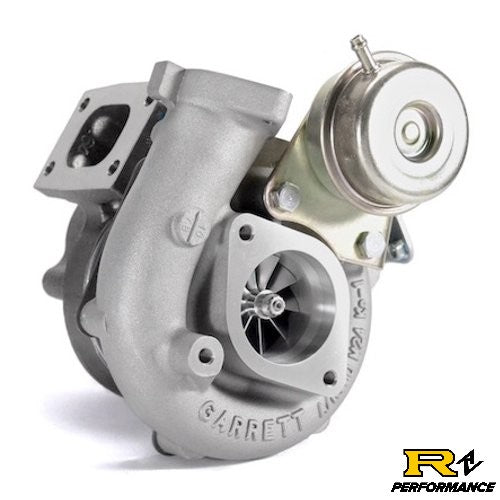

  • New GTX2976R .64 A/R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
  • Includes internally gated T25 flanged turbine housing .64 A/R  and internal wastegate actuator (12 to 14PSI).
  • The GTX2976R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 640HP potential flow.


  • Compressor Wheel Inducer: 58.0mm
  • Compressor Wheel Exducer: 76.6mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 53.6mm
  • Turbine Wheel Trim: 90
  • Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
  • Internal Wastegate Actuator (12 to 14PSI)

Kit Includes everything you need to bolt turbo onto your SR20DET

  • 5-Bolt Gasket
  • Inlet Gasket

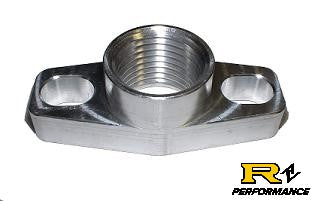

  • Aluminum Oil Drain Flange
  • Oil Drain Gasket
