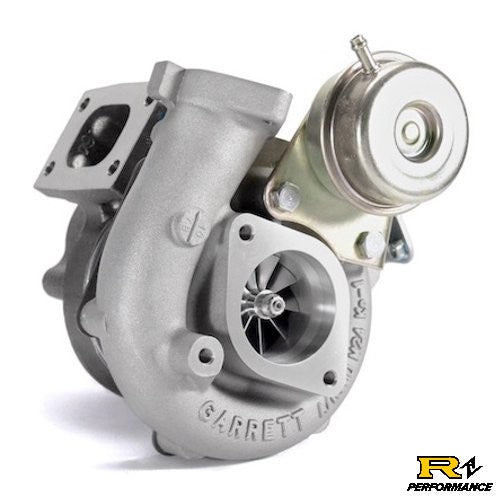

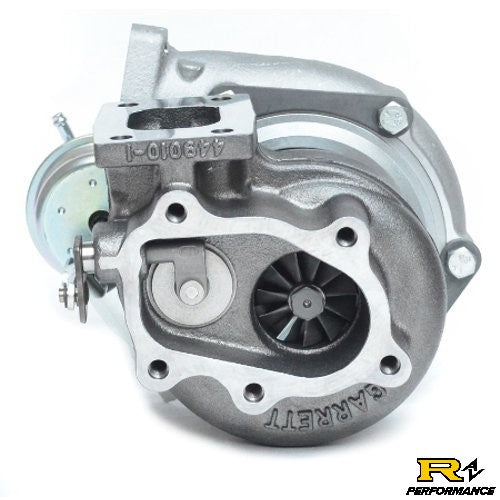

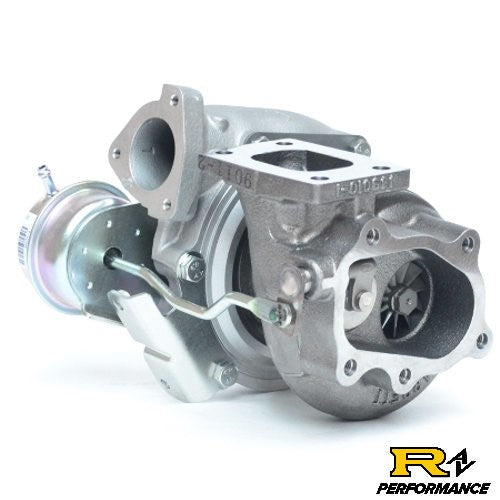

Garrett GTX2871R .64 A/R DBB SR20DET Drop-In Turbo Kit 550HP+ Upgrade Silvia S13 S14 S15 240SX
by Garrett
$2,095.00
or pay over time in interest-free installments with Affirm.
learn more
SKU GRT-TBO-505
Garrett GTX2871R .64 A/R
PRODUCT DESCRIPTION:
- New GTX2871R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
- Includes internally gated T25 flanged turbine housing .86 A/R and internal wastegate actuator (12 to 14PSI).
- The GTX2871R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 560HP potential flow.
PRODUCT SPECIFICATIONS
- Compressor Wheel Inducer: 54.1mm
- Compressor Wheel Exducer: 71.4mm
- Compressor Wheel Trim: 58
- Turbine Wheel Inducer: 53.9mm
- Turbine Wheel Exducer: 47.0mm
- Turbine Wheel Trim: 76
- Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
- Internal Wastegate Actuator (12 to 14PSI)

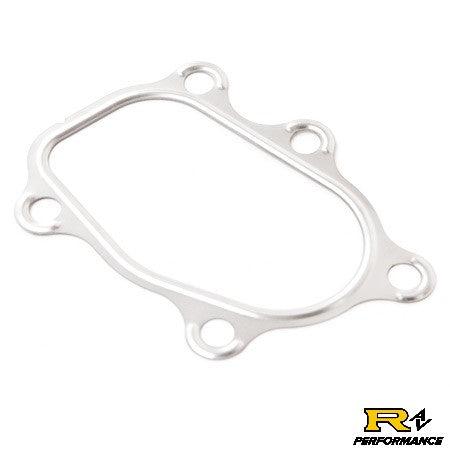

- 5-Bolt Gasket
- Inlet Gasket

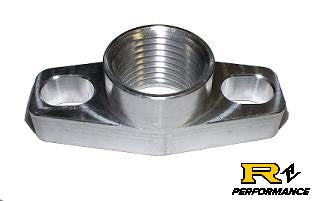

- Aluminum Oil Drain Flange
- Oil Drain Gasket
