Garrett GTX2871R .86 A/R DBB SR20DET Drop-In Turbo Kit 550HP+ Upgrade Nissan Silvia S13 S14 S15 240SX

by Garrett
Save 3%
$1,713.69
$1,654.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-505-86AR

Garrett GTX2871R .64 A/R

PRODUCT DESCRIPTION:

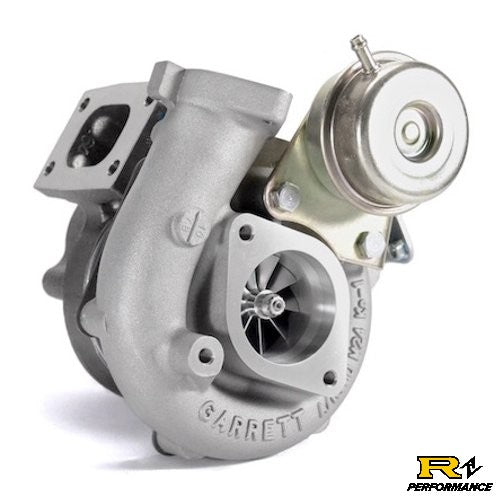

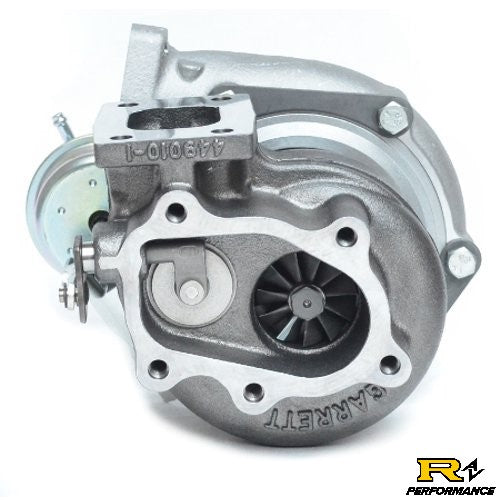

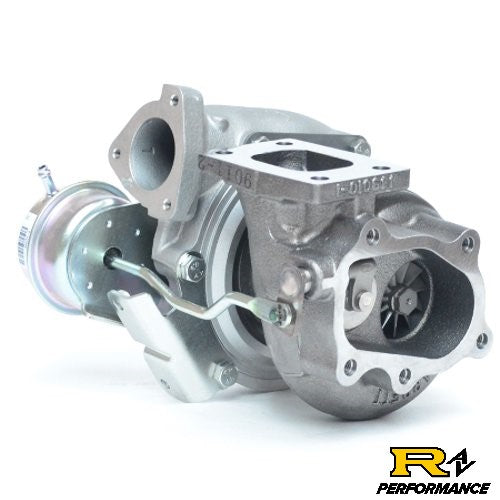

  • New GTX2871R dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
  • Includes internally gated T25 flanged turbine housing .86 A/R and internal wastegate actuator (12 to 14PSI).
  • The GTX2871R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 560HP potential flow.


PRODUCT SPECIFICATIONS

  • Compressor Wheel Inducer: 54.1mm
  • Compressor Wheel Exducer: 71.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47.0mm
  • Turbine Wheel Trim: 76
  • Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
  • Internal Wastegate Actuator (12 to 14PSI)
Kit Includes everything you need to bolt turbo onto your SR20DET
  • 5-Bolt Gasket
  • Inlet Gasket

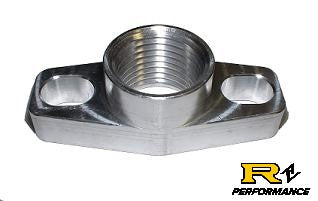

  • Aluminum Oil Drain Flange
  • Oil Drain Gasket
