Garrett GT3076R DBB Bolt-On 525hp Turbo-Kit RB25DET T3 6 bolt exit turbine RB20/25DET Skyline R32/33/34
by Garrett
$1,680.00
or pay over time in interest-free installments with Affirm.
learn more
SKU GRT-TBO-J26
Product Description:

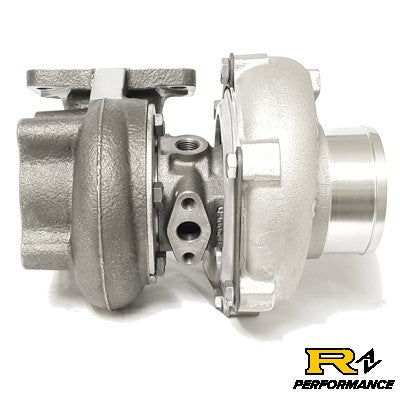

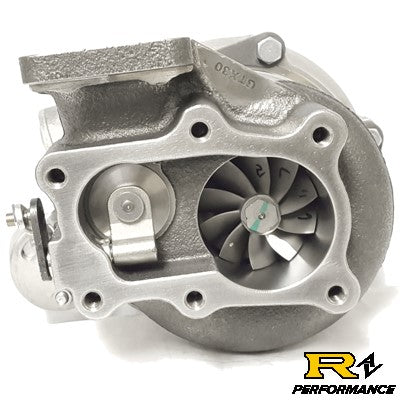

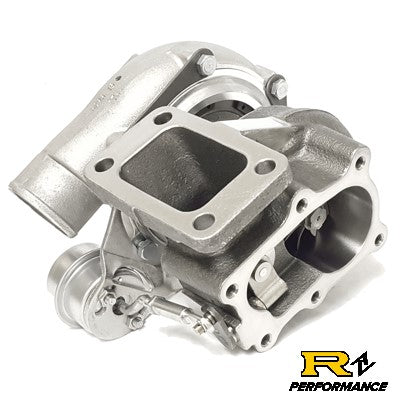

- Garrett GT3076R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 525+HP potential flow.
- Genuine Garrett GT Aero compressor wheel
- Genuine Garrett GT Inconel turbine wheel
- Dual ball bearing CHRA rotating assembly
Product Specifications:
- Compressor Wheel Inducer: 57mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 56
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Coolant in/out
- Oil feed
- Oil drain flange
- Oil drain gasket
