Garrett GT3071R DBB Bolt-On 480hp Turbo-Kit RB25DET T3 6 bolt exit turbine RB20/25DET Skyline R32/33/34

by Garrett
Save 6%
$1,785.00
$1,680.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-J25

Product Description:

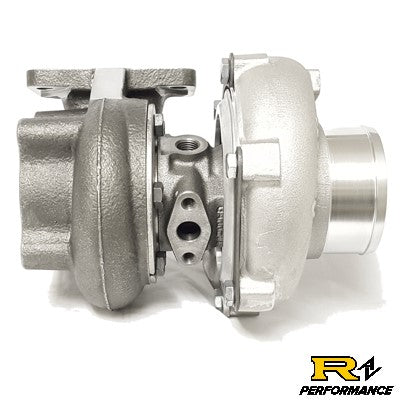

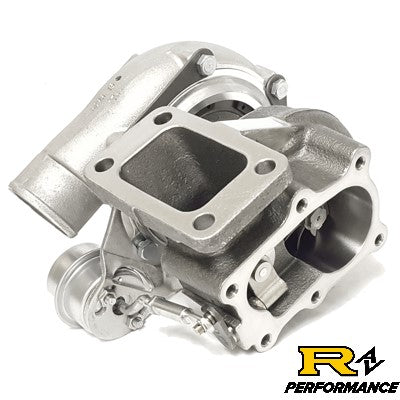

    Garrett GT3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 480+HP potential flow.
Product Features:
  • Genuine Garrett GT Aero compressor wheel

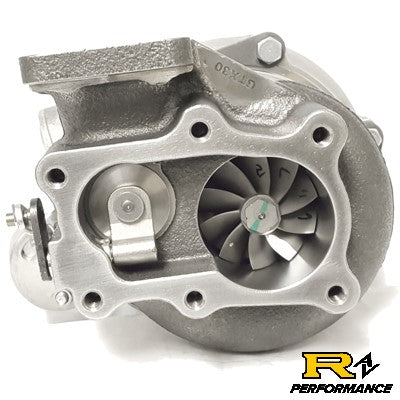

  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly

Product Specifications:
  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing A/R: 0.50
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
Kit Includes everything you need to bolt turbo onto your RB20DET or RB25DET
  • Coolant in/out
  • Oil feed
  • Oil drain flange
  • Oil drain gasket
