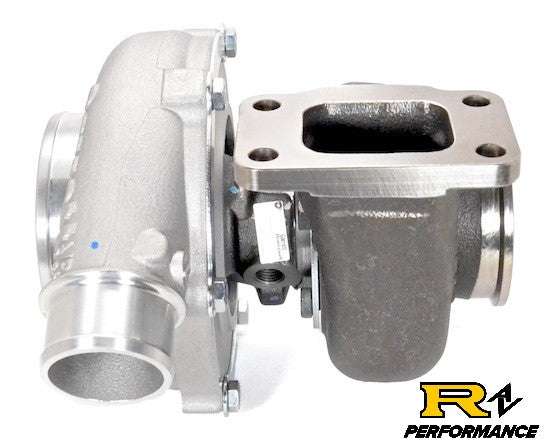

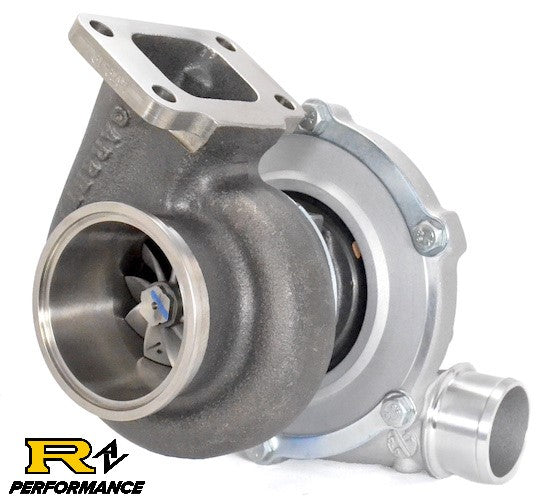

Garrett GEN2 GTX3576R Turbo with .63 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip
Click or scroll to zoom
Tap or pinch to zoom
Garrett GEN2 GTX3576R Turbo with .63 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip
Click or scroll to zoom
Tap or pinch to zoom
Garrett GEN2 GTX3576R Turbo with .63 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip
Garrett GEN2 GTX3576R Turbo with .63 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip

Garrett GEN2 GTX3576R Turbo with .63 A/R T3 Turbine Housing w/3" GT VBAND conical exit w/81mm lip

by Garrett
Save 4%
$2,643.93
$2,533.00

or pay over time in interest-free installments with Affirm.

learn more

PAYING IN INSTALLMENTS
Want to spread out the cost of your order? Select 'Affirm' as your payment method at checkout to pay in low interest or interest-free installments, with no hidden fees.

With Affirm, you can make monthly payments with zero hidden fees. Payment options are subject to eligibility check and approval. Estimated payments amounts excludes taxes and shipping fees. A down payment may be required. Affirm payment options are provided by Cross River Bank, Member FDIC.

SKU GRT-TBO-817

GEN2 - Garrett GTX3576R Turbo with .63 A/R Open (Undivided) T3 Turbine Housing (ATP-HSG-044) w/3" GT VBAND conical exit w/81mm centering ring. Complete Turbo P/N: 856801-5048S



PRODUCT DESCRIPTION:

Garrett GEN2 GTX3576R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 750HP!

PRODUCT SPECIFICATIONS:

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: 0.60 A/R T04E Frame, Ported Shroud 4" Inlet, 2" Outlet
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

  •
