Garrett Gen2 GTX3576R DBB Bolt-On 750hp Turbo Kit w/ RB25DET T3 6 bolt exit turbine RB20DET/25DET

Garrett Gen2 GTX3576R DBB Bolt-On 750hp Turbo Kit w/ RB25DET T3 6 bolt exit turbine RB20DET/25DET

by Garrett
$2,354.00

or pay over time in interest-free installments with Affirm.

learn more

PAYING IN INSTALLMENTS
Want to spread out the cost of your order? Select 'Affirm' as your payment method at checkout to pay in low interest or interest-free installments, with no hidden fees.

With Affirm, you can make monthly payments with zero hidden fees. Payment options are subject to eligibility check and approval. Estimated payments amounts excludes taxes and shipping fees. A down payment may be required. Affirm payment options are provided by Cross River Bank, Member FDIC.

SKU GRT-TBO-J24

Product Description:

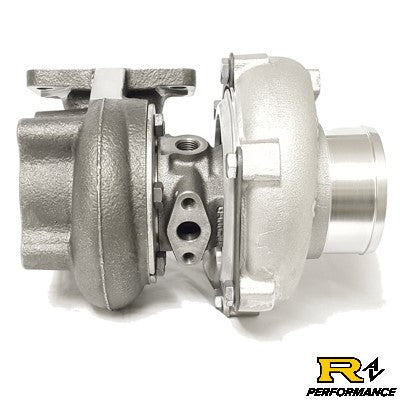

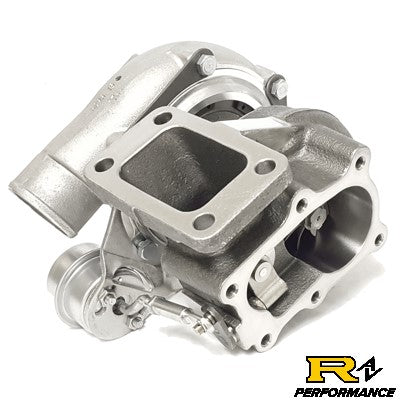

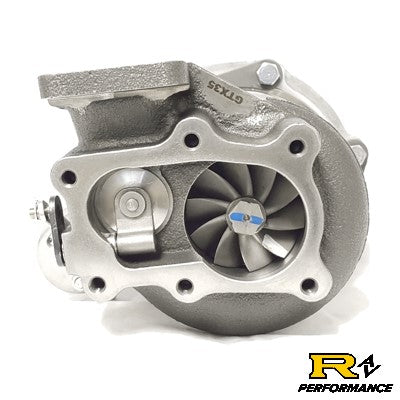

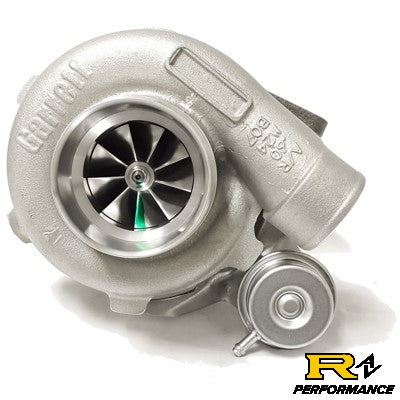

    Garrett GEN2 GTX3576R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP!
Product Specifications:
  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: 0.60 A/R
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
Kit Includes everything you need to bolt turbo onto your RB25DET
  • Coolant in/out
  • Oil feed
  • Oil drain flange
  • Oil drain gasket
