Garrett Gen2 GTX3076R DBB Bolt-On 750hp Turbo Kit w/RB25DET T3 6 bolt exit turbine RB20DET/25DET Skyline R32/33/34

by Garrett
$2,084.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-J28

Product Description:

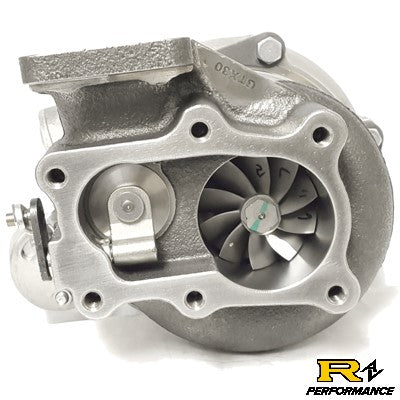

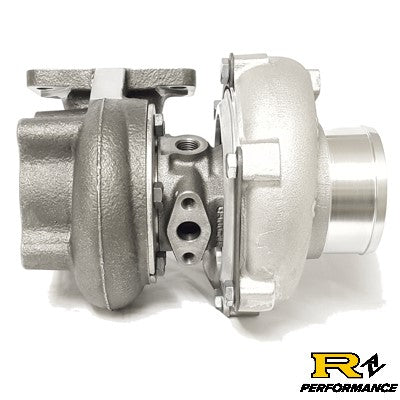

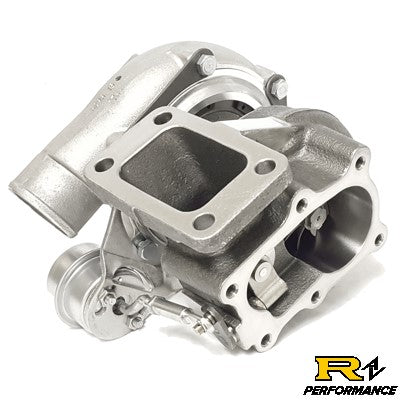

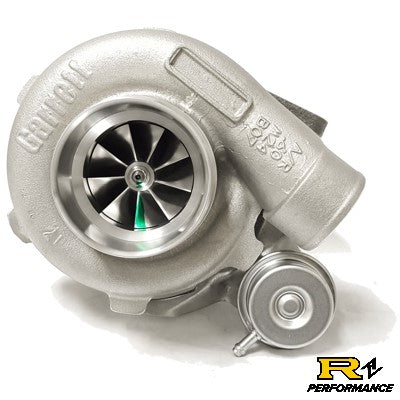

    Garrett GEN2 GTX3076R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84
Kit Includes everything you need to bolt turbo onto your RB20DET or RB25DET
  • Coolant in/out
  • Oil feed
  • Oil drain flange
  • Oil drain gasket
