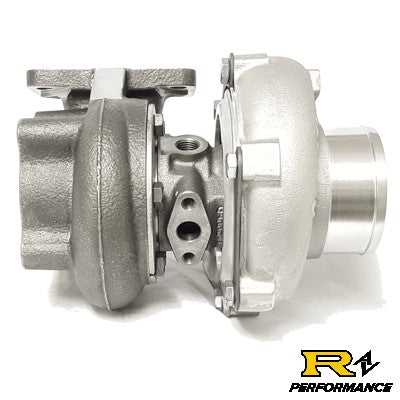

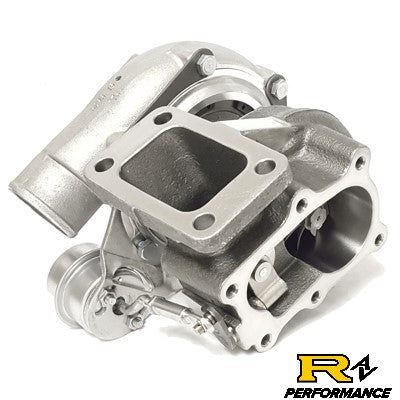

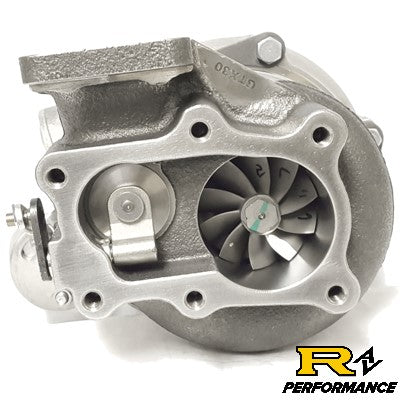

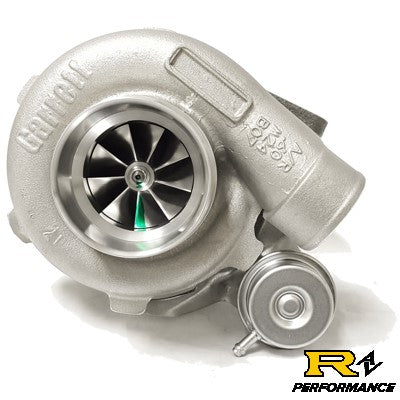

Garrett Gen2 GTX3071R DBB Bolt-On 650hp Turbo Kit w/RB25DET T3 6 bolt exit turbine RB20DET/25DET Skyline R32/33/34
by Garrett
$2,198.00
or pay over time in interest-free installments with Affirm.
learn more
SKU GRT-TBO-J22
Product Description:
- Garrett GEN2 GTX3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 650HP!
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Coolant in/out

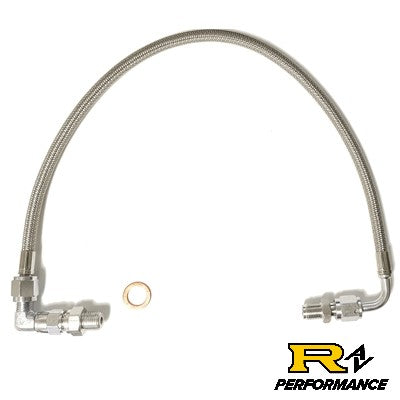

- Oil feed

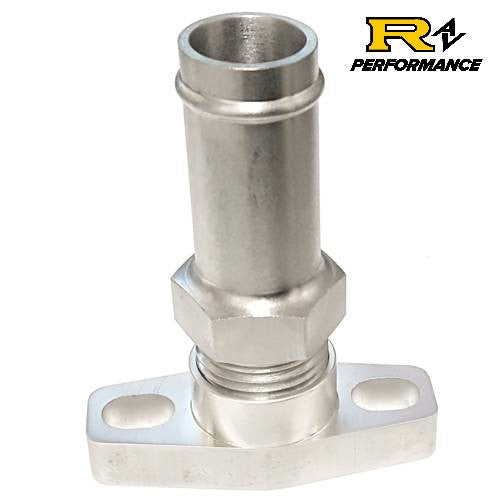

- Oil drain flange
- Oil drain gasket
