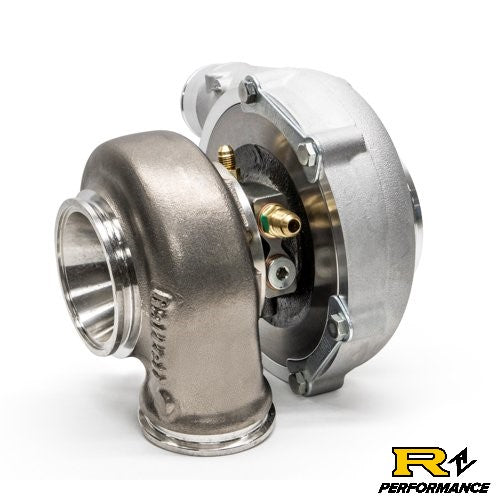

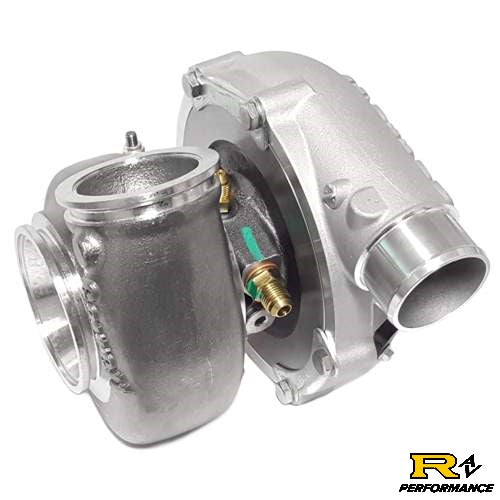

Garrett G35-1050 Turbo, REVERSE ROTATION, 1.21 A/R O/V, V-Band In/Out, P/N 880701-5010S
by Garrett
Save 2%
$2,816.43
$2,750.00
or pay over time in interest-free installments with Affirm.
learn more
SKU GRT-TBO-M66
Product Description:
- Garrett® G35-1050 reverse rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and 1.21 A/R O/V, V-Band In/Out.
Product Features:
- New G Series compressor wheel aerodynamics
- Fully machined speed sensor and pressure ports
- Standard and reverse rotation configurations available
- Oil restrictor and water fittings included with purchase
- One-piece center housing and backplate for increased durability
- 4 water jacket ports for customizable installation
- Mar-M turbine wheel material rated up to 1050° C | 1922° F
- Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
- Compressor Wheel Inducer: 68mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
- Includes Turbine Housing Inlet & Outlet V-Band Clamps
