Garrett G35-1050, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT

by Garrett
$2,698.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-P22

Product Description:

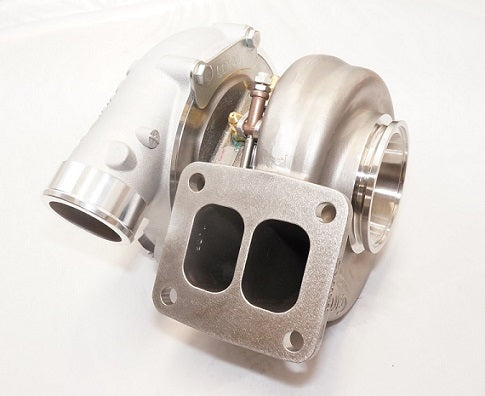

      Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and 1.06 A/R O/V, DIVIDED T4 (Twinscroll) Entry/V-Band outlet turbine housing.


Product Features:
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: T4 Divided inlet (same flange size and placement as GTX)
  • Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
