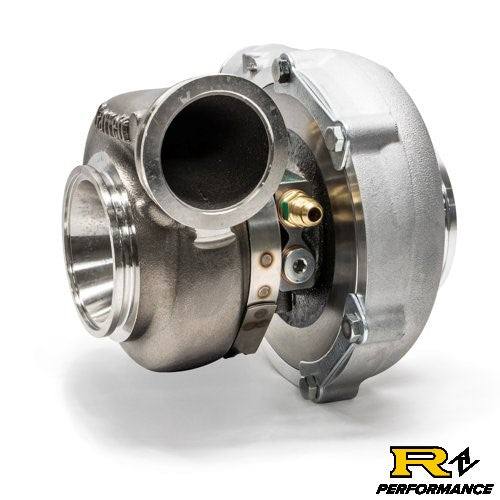

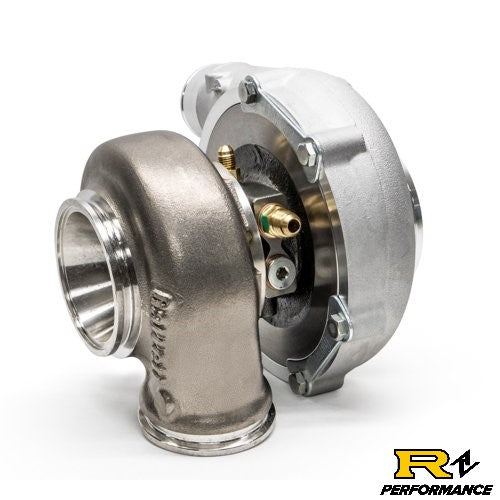

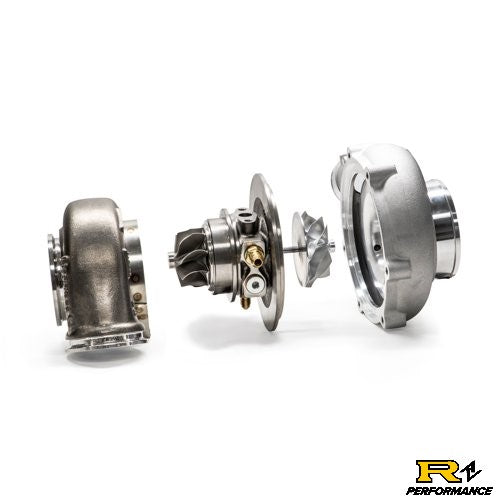

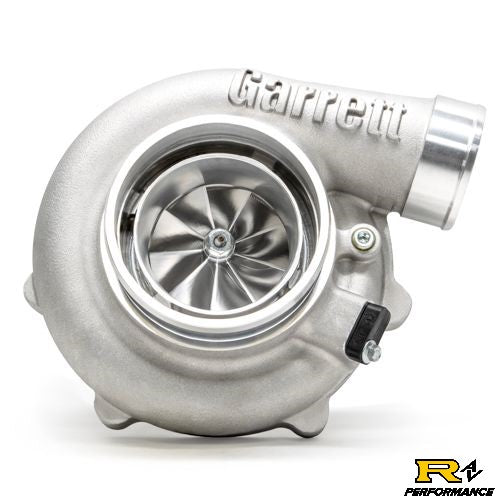

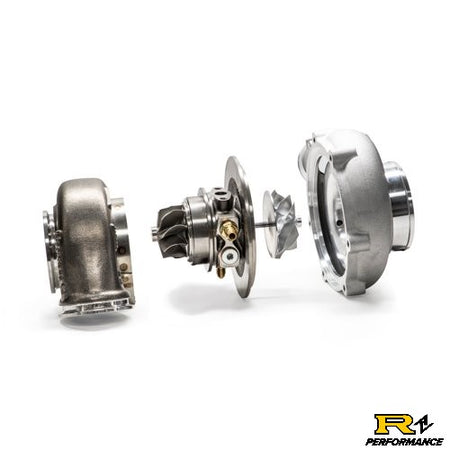

Garrett G35-1050 Turbo STANDARD ROTATION 0.83 A/R O/V V-Band In/Out 880700-5009S

by Garrett
Save 2%
$2,708.11
$2,648.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-L61

Product Description:

      Garrett® G35-1050 standard turbo assembly kit, 0.83 A/R O/V, V-Band In/Out.


Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One-piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F

Product Specifications:

  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps
