Garrett G35-1050 Turbo, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N 880695-5002S

by Garrett
Save 5%
$2,280.47
$2,165.00

or pay over time in interest-free installments with Affirm.

learn more
SKU GRT-TBO-M97

Product Description:

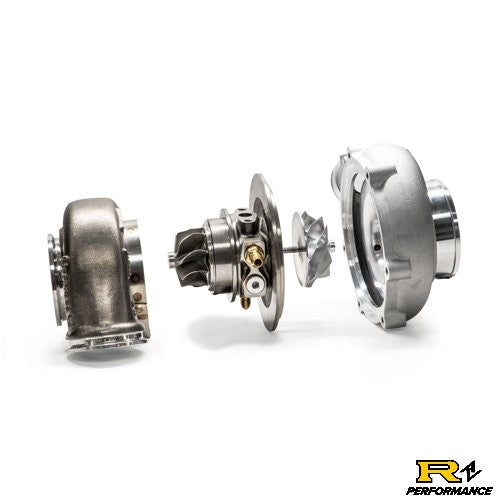

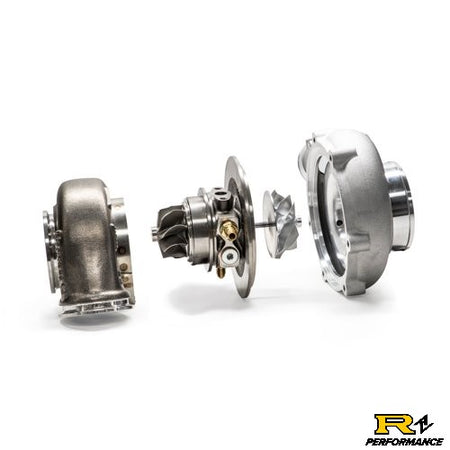

Garrett® G35-1050 STANDARD Rotation Supercore (Turbo without turbine housing).


Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One-piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
