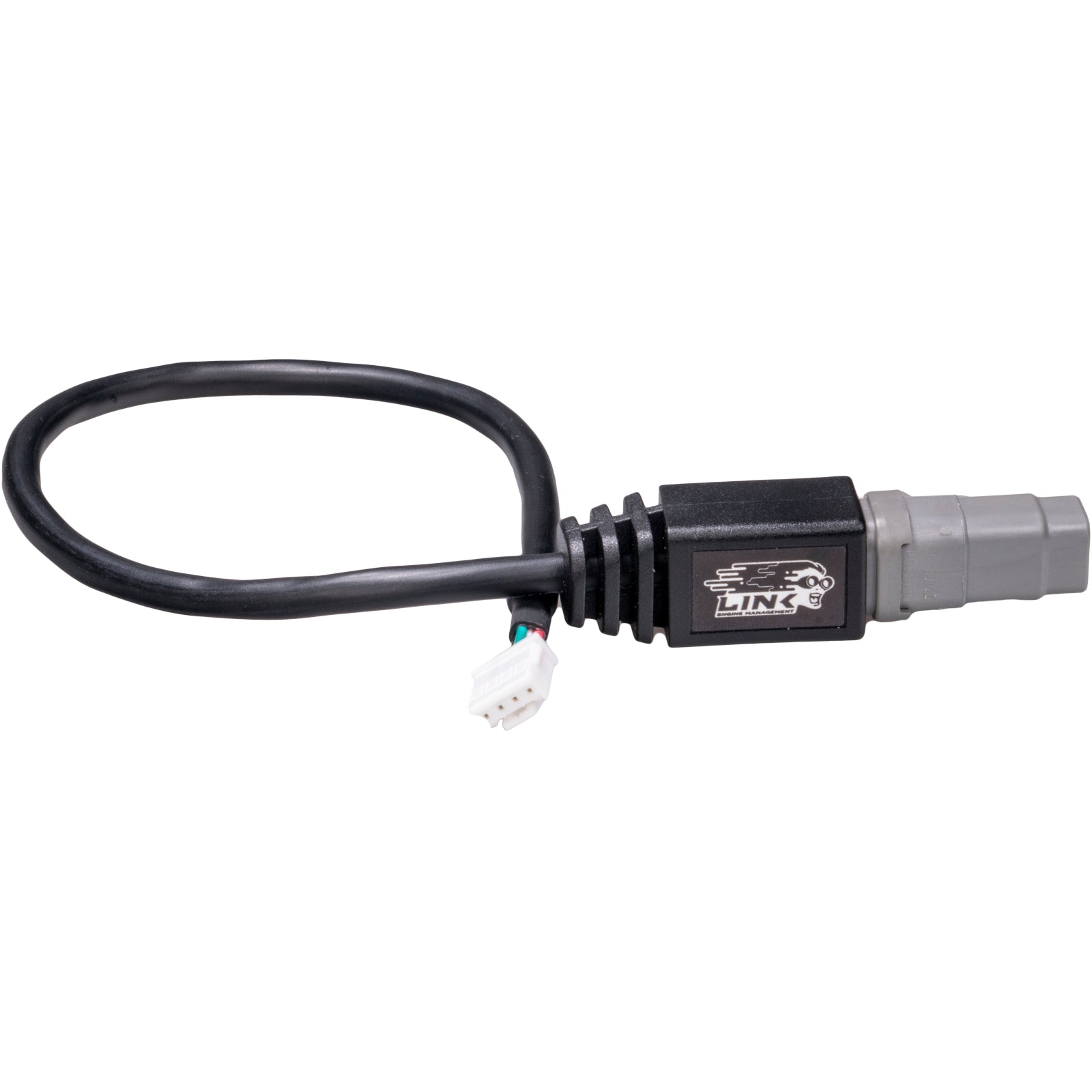

Link ECU CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)
Couldn't load pickup availability
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert
Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.
Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Compatible PlugIns:
214-4100 - PlugIn ECU G4X Nissan GTR with E-Throttle
217-4100 - PlugIn ECU G4X Nissan S15 with E-Throttle
233-4000 - PlugIn ECU G4X Honda S2000 AP1
228-4000 - PlugIn ECU G4X Subaru WRX V5-6
237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 - Plugin ECU G4X Subaru WRX11
239-4000 - Plugin ECU G4X MX5NB2X
240-4000 - Plugin ECU G4X MX5NB1X
243-4000 - Plugin ECU G4X WRX11 USDM
241-4200 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ LHD
241-4000 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ RHD
Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
