Garret G42-1200C, T4 Divided 1.15 A/R, Compact CHS Turbo
Regular price
$3,386.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert
Product Description:
Product Features:

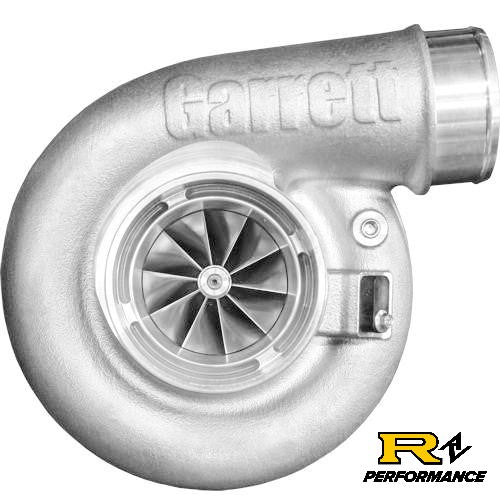

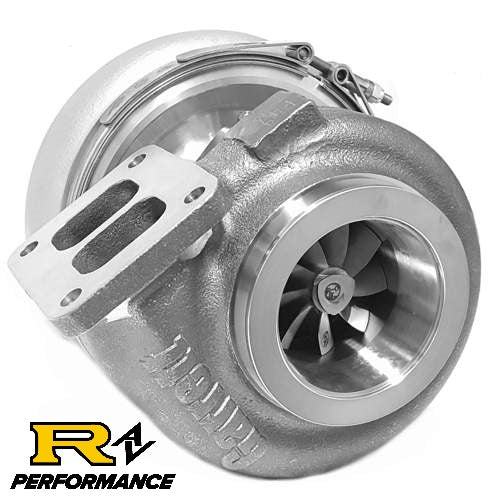

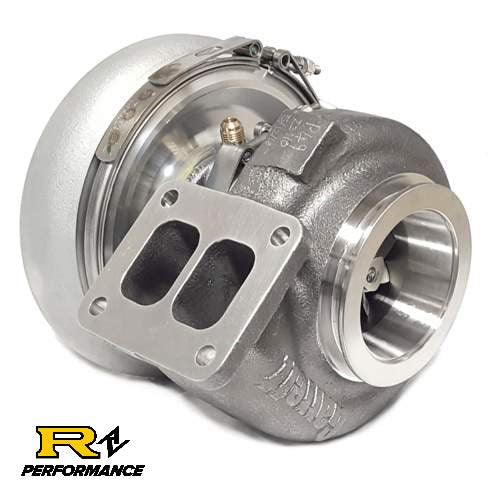

- Garrett® G42-1200 compact turbo assembly kit with 1.15 T4 divided turbine housing. Capable of 1200HP!
Product Features:
- Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
- Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
- Low inertia compressor wheel resulting in faster boost response
- New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
- Engineered with inconel super alloy to withstand operating temperatures up to 950C

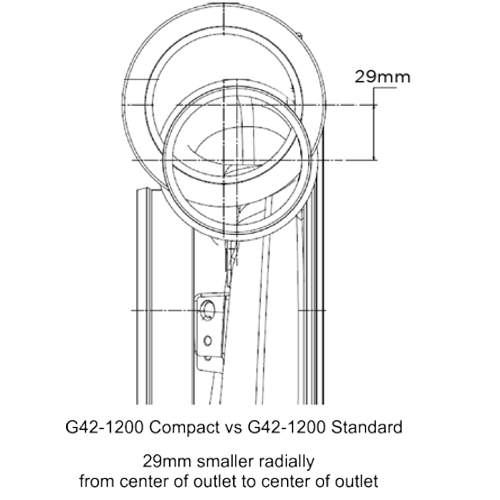

- Compact option is 4mm shorter axially and 29mm smaller radially than the standard G42
- Compressor Wheel Inducer: 73mm
- Compressor Wheel Exducer: 91mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.90 w/ 4" inlet and 3" outlet hose connections
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75mm
- Turbine Wheel Trim: 84
